HD Graphite Electrode
High-density graphite（HD） electrodes are made of high-quality petroleum coke, coal tar and other raw materials, through calcining, crushing, screening, dosing, kneading, forming, baking, graphitization, machining.
key word:
Category:
HD Graphite Electrode
Hotline:
- Product Description
- Electrodes Size
- Nipples Size
- Specifications
- Current-Carrying Capacity
- Packing
- Precautions for Use
-
- Commodity name: HD Graphite Electrode
- Commodity ID: 1053232364471017472
High-density graphite（HD） electrodes are made of high-quality petroleum coke, coal tar and other raw materials, through calcining, crushing, screening, dosing, kneading, forming, baking, graphitization, machining.
High-density graphite（HD） electrodes are made of high-quality petroleum coke, coal tar and other raw materials, through calcining, crushing, screening, dosing, kneading, forming, baking, graphitization, machining. Good thermal conductivity, high mechanical strength, and strong resistance to oxidation and corrosion at high temperatures. It is widely used in electric arc furnaces and ladle refining furnaces to smelt various alloy steels, yellow phosphorus, industrial silicon, brown corundum, and other alloys and non-metal materials.
Key words:- HD Graphite Electrode
-
Norminal Diameter (mm)
Actual Diameter (mm)
Length (mm)*
mm
inch
Max
Min
Low Spot
75
3
78
73
72
1600
100
4
103
98
97
1600
130
5
132
127
126
1600
150
6
154
149
146
1800
200
8
205
200
197
1800
225
9
230
225
222
1800
250
10
256
251
248
1800
300
12
307
302
299
1800
350
14
357
352
349
1800
400
16
409
403
400
1800.2100
450
18
460
454
451
1800.2100
500
20
511
505
502
1800.2100
550
22
562
556
553
2100.2400
600
24
613
607
604
2100.2400
-
Dimension of Cylinder Nipples
Norminal Diameter (mm)
Size of Nipples (mm)
Size of Sockets (mm)
Thread (mm)
mm
inch
D
d
L
D
d
H
a
b
c
75
3
41.2
0
-0.5
33.8
0
-0.5
103.0
0
-1.0
42.5
+0.50
35.1
+0.50
53.0
+7
0
8.47
2.37
2.82
100
4
66.7
59.3
135.0
68.0
60.6
69.0
130
5
69.8
62.4
153.0
71.1
63.7
78.0
150
6
88.9
81.5
169.0
90.2
82.8
85.0
200
8
122.2
114.8
203.0
123.5
116.1
103.0
225
9
139.7
128.8
203.0
140.98
130.0
106.0
12.70
3.67
4.32
250
10
152.4
141.5
228.0
154.1
143.2
116.0
300
12
184.2
173.3
254.0
185.9
175.0
129.0
350
14
215.9
205.0
280.0
217.6
206.7
142.0
400
16
244.5
233.6
305.0
246.2
235.3
155.0
450
18
274.3
0
-0.7
263.4
0
-0.7
340.0
0
-2 .0
276.0
+0.70
265.1
+0.70
172.5
500
20
296.0
285.1
375.0
297.7
286.8
190.0
Dimension of 3TPI Conical Nipples
Norminal Diameter (mm)
Size of Nipples (mm)
Size of Sockets (mm)
Thread (mm)
mm
inch
D
L
d
1
d
H
225
9
139.7
0
-0.5
203.2
0-1
90.73
0
-5
<10
131.27
+0.5
0
107.6
+7
0
8.47
250
10
155.57
220.10
103.80
147.14
116.00
300
12
177.17
270.90
116.90
168.73
141.50
350
14
215.90
304.80
150.00
207.47
158.40
400
16
215.9
304．8
150
207．47
158．40
400
16
241.30
338.70
169.80
232.87
175.30
450
18
241.30
338.70
169.80
232.87
175.30
450
18
273.05
355.60
198.70
264.62
183.80
500
20
273.05
355.60
198.70
264.62
183.80
500
20
298.45
372.60
221.30
290.02
192.20
Dimension of 4TPI Conical Nipples
Norminal Diameter (mm)
Size of Nipples (mm)
Size of Sockets (mm)
Thread (mm)
mm
inch
D
L
d
1
d
H
75
3
46.04
0
-0.5
76.20
0
-1
20.80
0
-5
<7
39.72
+0.5
0
44.10
+7
0
6.35
100
4
69.85
101.60
40.30
63.53
56.80
130
5
79.38
127.00
45.60
73.06
69.50
150
6
92.08
139.70
56.20
85.76
75.90
200
8
122.24
177.80
80.00
115.92
94.90
225
9
139.70
177.80
97.46
133.38
94.90
250
10
152.40
190.50
108.00
146.08
101.30
300
12
177.80
215.90
129.20
171.48
114.00
350
14
203.20
254.00
148.20
196.88
133.00
400
16
222.25
304.80
158.80
215.93
158.40
400
16
222.25
355.60
150.00
215.93
183.80
450
18
241.30
304.80
177.90
234.98
158.40
450
18
241.30
355.60
169.42
234.98
183.80
500
20
269.88
355.60
198.00
263.56
183.80
500
20
269.88
457.20
181.08
263.56
234.60
550
22
298.45
355.60
226.58
292.13
183.80
550
22
298.45
457.20
209.65
292.13
234.60
600
24
317.50
355.60
245.63
311.18
183.30
600
24
317.50
457.20
228.70
311.18
234.60
-
Item
Unit
Norminal Diameter（mm）
75~225
250~350
400~500
Electric Resistivity Max
Electrode
μΩ·m
7.5
7.5
7.5
Nipples
5.5
5.5
5.5
Flexural Strength Min
Electrode
MPa
10.0
10.0
10.0
Nipples
13.0
13.0
13.0
Elastic Modulus Max
Electrode
GPa
12.0
12.0
12.0
Nipples
14.0
14.0
14.0
Bulk Density Min
Electrode
g/cm³
1.58
1.58
1.58
Nipples
1.68
1.68
1.68
C.T.E. Max（100℃~600℃）
Electrode
10¯⁶ /℃
2.7
2.7
2.7
Nipples
2.5
2.5
2.5
Ash Max
%
0.3
0.3
0.3
-
Norminal diameter（mm）
Current-Carrying Capacity（A）
Current Density（A/cm²）
75
1300~2000
29-45
100
1800~3000
22-37
130
2800~4200
21~31
150
4000~5000
22-28
200
4800~9000
15-28
250
8000~12000
16-24
300
11000~16000
15~22
350
15000~22000
15~22
400
20000~28000
15~22
450
24000~34000
15~21
500
28000~42000
13~20
-

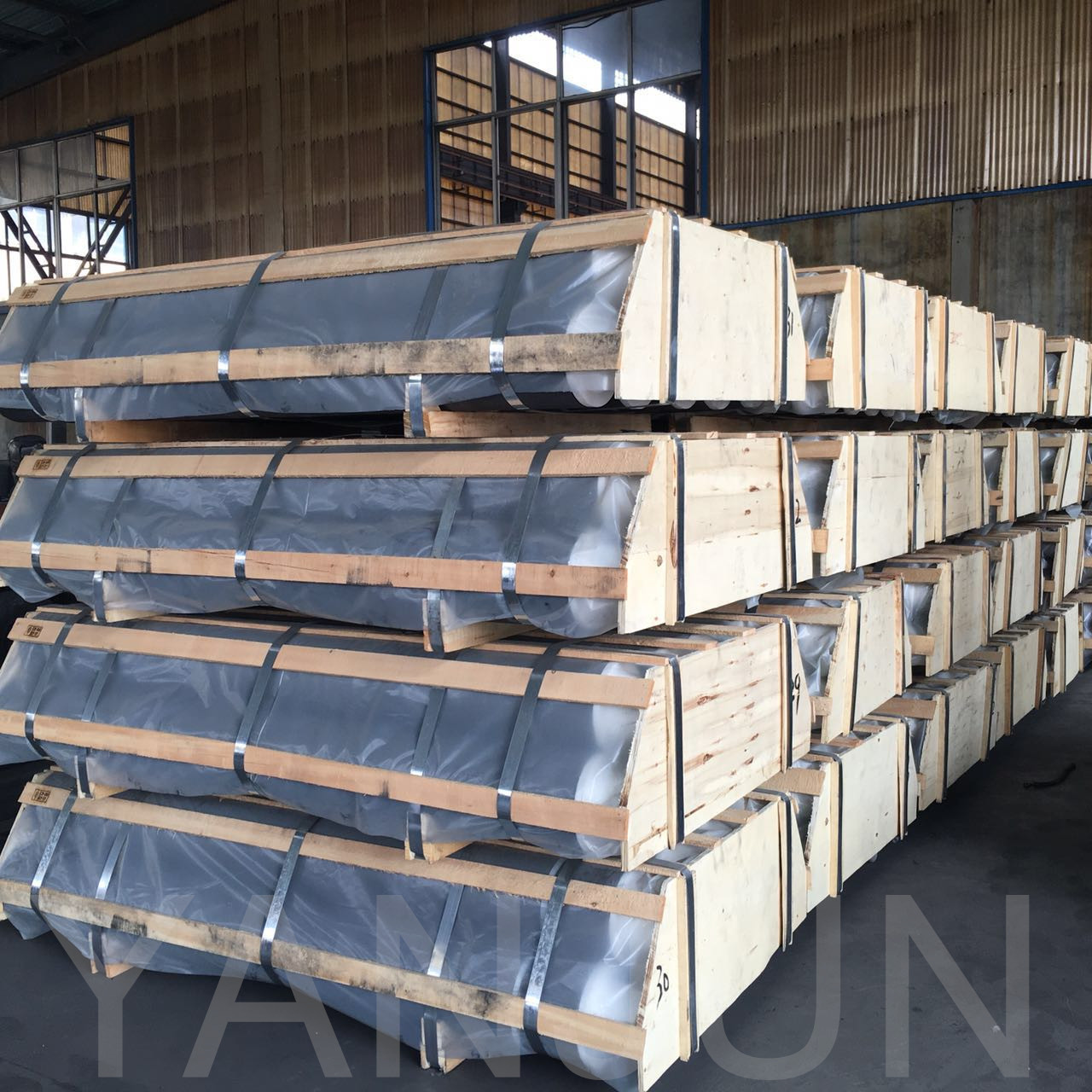

The packing is made of wood and plywood with strip steel outside and plastic outside. The solid wood slat is used to protect the graphite electrodes, the nipples and sockets are protected by foam hat first then by plywood outside, the plastic inside has effect of moisture proof and dust proof, with 6-8 steel strips outside, beautiful and firm which suitable for land and sea transportation.
-
1. When selecting electrode diameter for steel making, please refer to electrode current capacity.
2.Graphite electrodes should be protected from rain and snow during transportation and storage. Before use, they must be dried.
3.Graphite electrodes should be handled with care during loading, unloading, and transportation to protect the threads and prevent damage.
4.Before connecting the electrode, the electrode socket thread must be blown out with compressed air, and then the nipples and the electrode should be tightened.
5.The electrode lifting device of the electrode should not shake during operation to prevent the nipples from loosening and tripping.
6.The electrode holder must not hold the electrode near the nipple socket.
7.When charging the furnace, a large steel block should be placed at the lower part to prevent the material from collapsing and breaking the electrode during melting.
